Field-Ready UAV Video Modules for Mission-Critical Visual Chains
Thyraon Yunfeng Digital Air Unit Series is built for field-deployed UAV platforms that require low-latency video, real-time OSD workflow, 2K / 4K transmission, and repeatable integration, including reconnaissance UAV applications.
Built for UAV Video Integration, Not Camera Hardware Alone
Thyraon develops compact video modules for field-deployed UAV platforms where image clarity, low-latency transmission, real-time OSD workflow, power input, and receiver-side usability must work as one chain.
The Yunfeng Digital Air Unit Series is our current flagship line, built for UAV video integration scenarios that require 2K / 4K transmission, repeatable configuration, and production-side validation before customer deployment.
System-Level Capabilities for UAV Video Integration
Yunfeng is designed around the full UAV video path: camera module, air-side unit, OSD workflow, power input, interface board, receiver-side usability, and repeatable configuration.
1. Low-Latency Video Chain
Designed for video transmission workflows where camera output, encoding, link behavior, and receiver-side display need to remain synchronized.
2. Real-Time OSD Workflow
Available in 2K and 4K configurations to match different video clarity, bandwidth, and platform integration requirements.
3. 2K / 4K Series Options
Available in 2K and 4K configurations to match different video clarity, bandwidth, and platform integration requirements.
4. Power & Interface Integration
Built with defined power input and interface board options to reduce integration uncertainty during UAV platform development.
5. Repeatable Configuration
Supports repeatable module configuration for teams moving from prototype validation to production-side deployment.
6. Field Image Usability
Image performance is evaluated beyond resolution, including low-light behavior, exposure control, and usable visibility in field conditions.
Featured Yunfeng Digital Air Unit Series

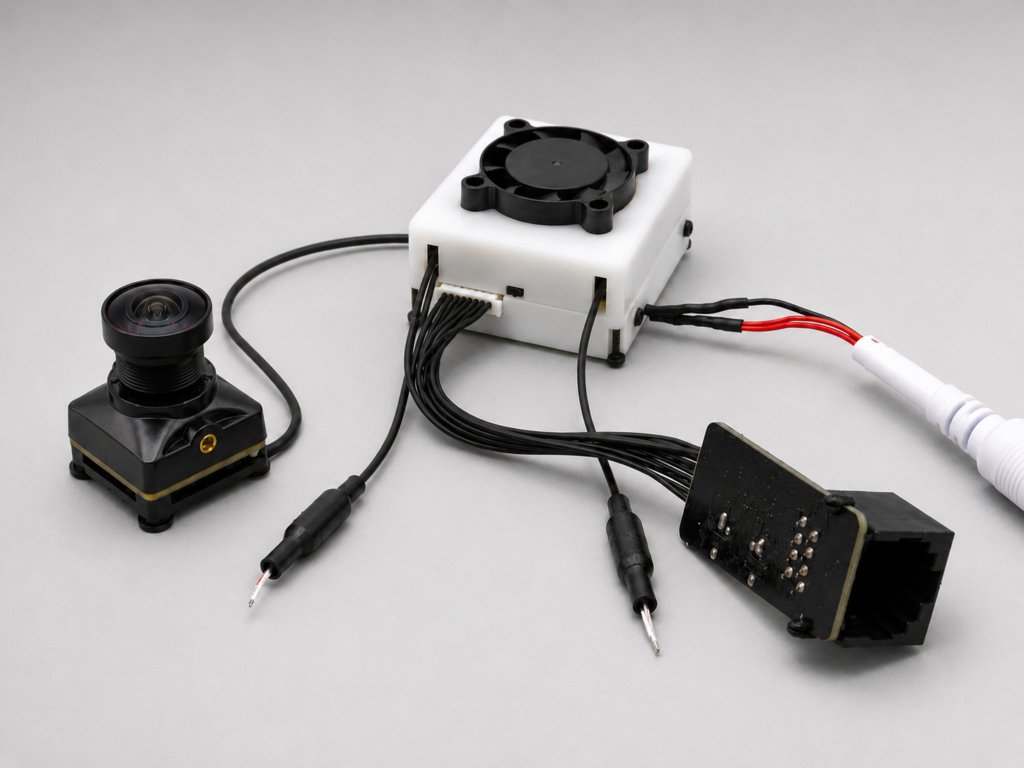

Yunfeng 1.0 — 2K
Compact 2K Air-Unit Configuration
• Resolution Modes: 2816×1584@60 / 1440p@60 / 1080p@90 / 720p@120
• FOV: 140°
• Input Voltage: DC 5–30V (2–6S)
• RF Output: 5.8GHz 20dBm
• Power: 10W
• Range: Open Link 25km; OpenAP Link 200–500m
• OSD: MSPOSD / MAVFWD
Designed for compact UAV video integration where 2K image clarity, real-time OSD workflow, and defined power input are required.

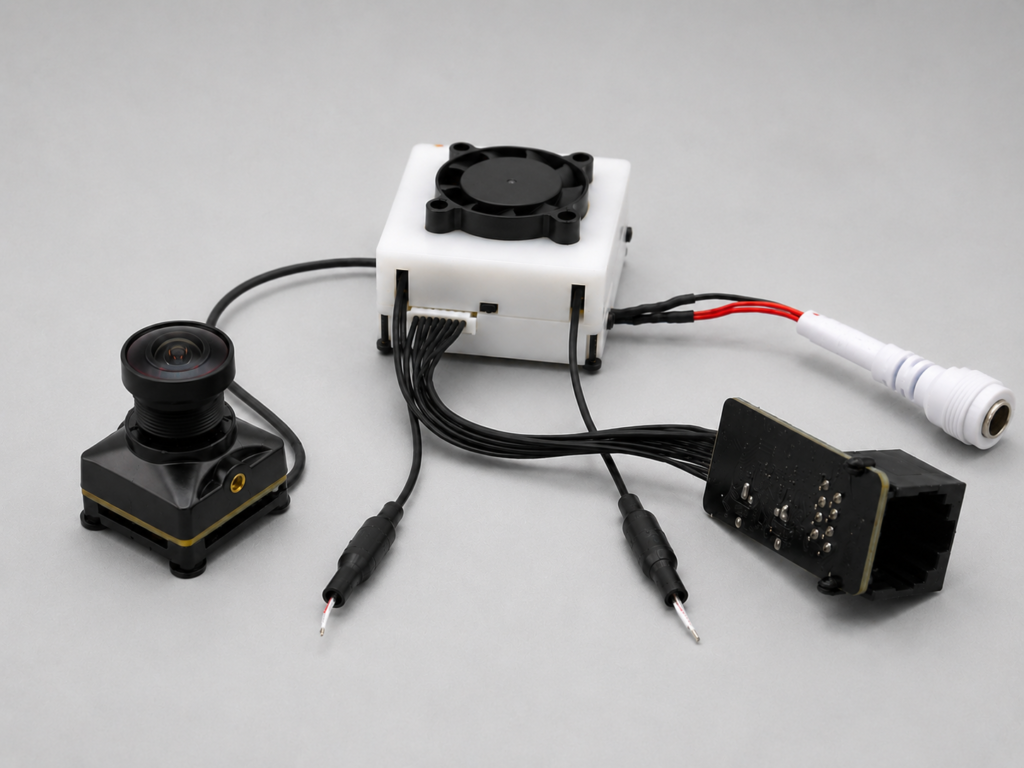

Yunfeng 1.0 — 4K
4K Air-Unit Configuration
• Resolution Modes: 4K@30 / 1440p@60 / 1080p@90 / 720p@120
• FOV: 160°
• Input Voltage: DC 5–30V (2–6S)
• RF Output: 5.8GHz 20dBm
• Power: 10W
• Range: Open Link 25km; OpenAP Link 200–500m
• OSD: MSPOSD / MAVFWD
Built for UAV platforms that require higher image detail while keeping the same defined air-unit integration path.

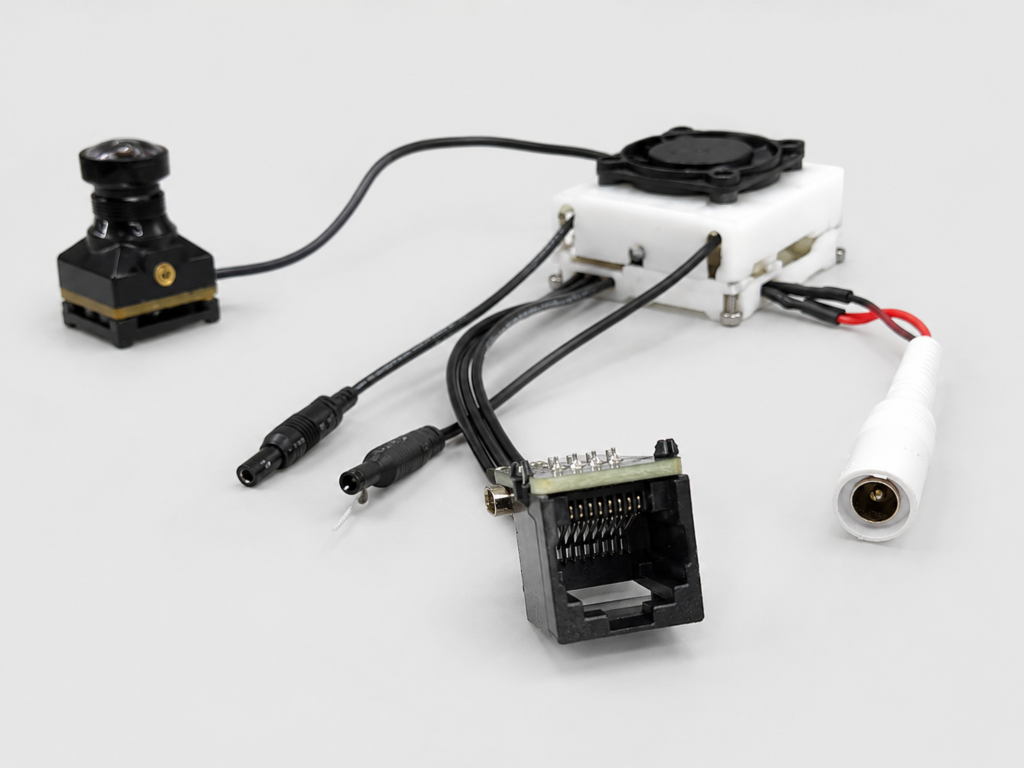

Yunfeng 2.0 — 2K
Enhanced 2K Air-Unit Configuration
• Resolution Modes: 2816×1584@60 / 1440p@60 / 1080p@90 / 720p@120
• FOV: 140°
• Input Voltage: DC 5–30V (2–6S)
• RF Output: 5.8GHz 29dBm
• Power: 15W
• Range: Open Link 45km; OpenAP Link 200–1000m
• OSD: MSPOSD / MAVFWD
Updated 2K configuration for UAV teams that need stronger RF output and repeatable video-chain deployment.

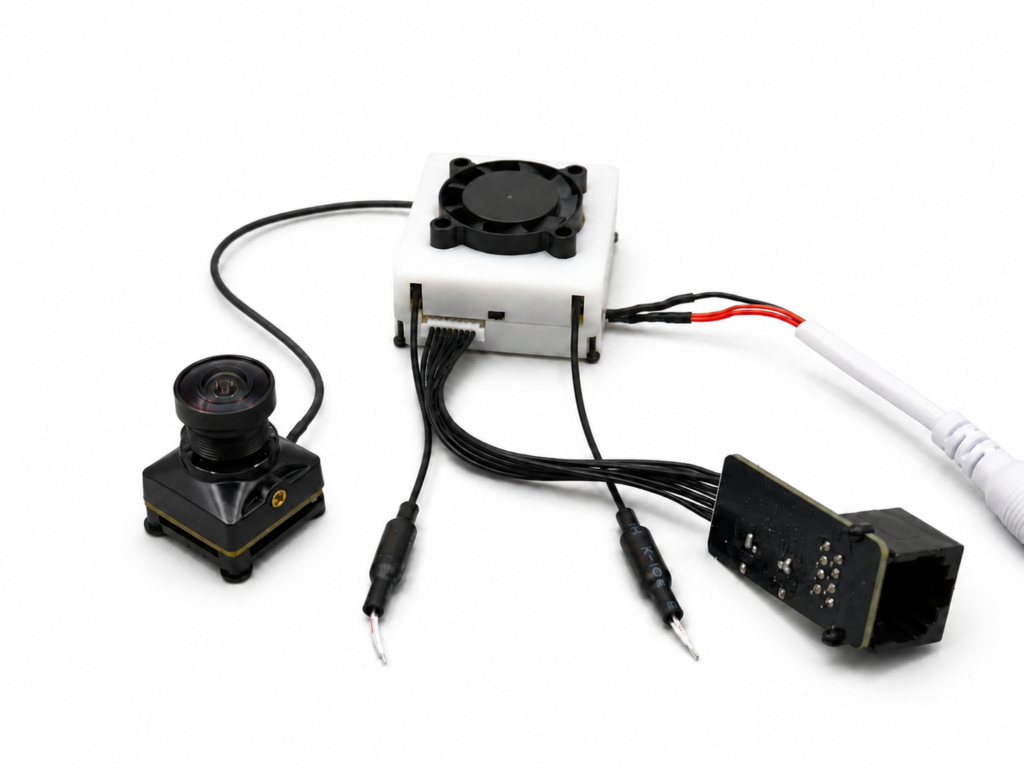

Yunfeng 2.0 — 4K
Flagship 4K Air-Unit Configuration
• Resolution Modes: 4K@30 / 1440p@60 / 1080p@90 / 720p@120
• FOV: 160°
• Input Voltage: DC 5–30V (2–6S)
• RF Output: 5.8GHz 29dBm
• Power: 15W
• Range: Open Link 45km; OpenAP Link 200–1000m
• OSD: MSPOSD / MAVFWD
Flagship 4K configuration for field-ready UAV video integration requiring higher image detail, stronger RF output, and real-time OSD support.
Planning a UAV video integration project?
Send us your required resolution, power input, OSD workflow, link protocol, and deployment scenario. Thyraon can help review the suitable Yunfeng configuration.
